Axil All-In-One Filling Directions

•
  Insert a blunt tip 16 to 20g needle into one of the two filling holes on either side of the center airway. Caution: Do not allow oil to enter the center airway, it is in between the filling holes.
•
  90°F/32°C (thinner oils) | 135°F/57°C (thicker oils) The ideal fill temperature will allow for filling and capping before the oil saturates the atomizer.
•
  Oversaturation from hot filling, thin oils, and/or slow capping will cause flooding, clogging and leaking.
•
  Do not overfill your devices! Fill to a maximum of 2.05mL or 1.05mL depending on your configuration. Overfilling may cause seal bulging and will force fluid through the atomizer.
•
  Cap within 3 minutes after filling. We recommend a shorter period of time for thinner oils. Immediately after filling, cap the device with the mouthpiece until it’s fully seated.

Axil All-In-One Capping Directions

•
  Make sure the mouthpiece is properly aligned and straight. Press the mouthpiece down vertically (not at an angle) using even pressure, until you hear a click.
•

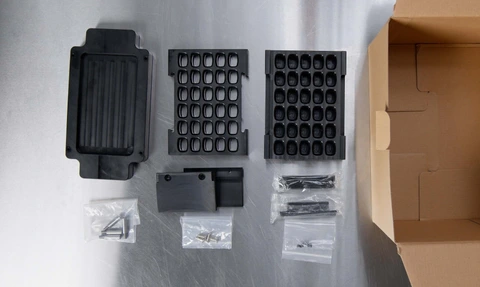

  You can seat the mouthpiece by hand, but a light- duty arbor press and jig are recommended. Do not use a hammer or mallet. Pressing at an angle can lead to damage, improper sealing, leakage, and cracking of the device.
•
  If too much pressure is applied during capping, you can damage the cart or silicone end caps. Check the pressure carefully.
•
  You cannot remove the mouthpiece once it’s fully seated without damaging the device or the mouthpiece.
•
  Let your devices stand for between 30 minutes to 12 hours before using. During this time, the oil is priming the atomizer. More viscous oils will require more time.

NOTE: Do not use power chargers that output more than 5 volts. These may damage the battery.
